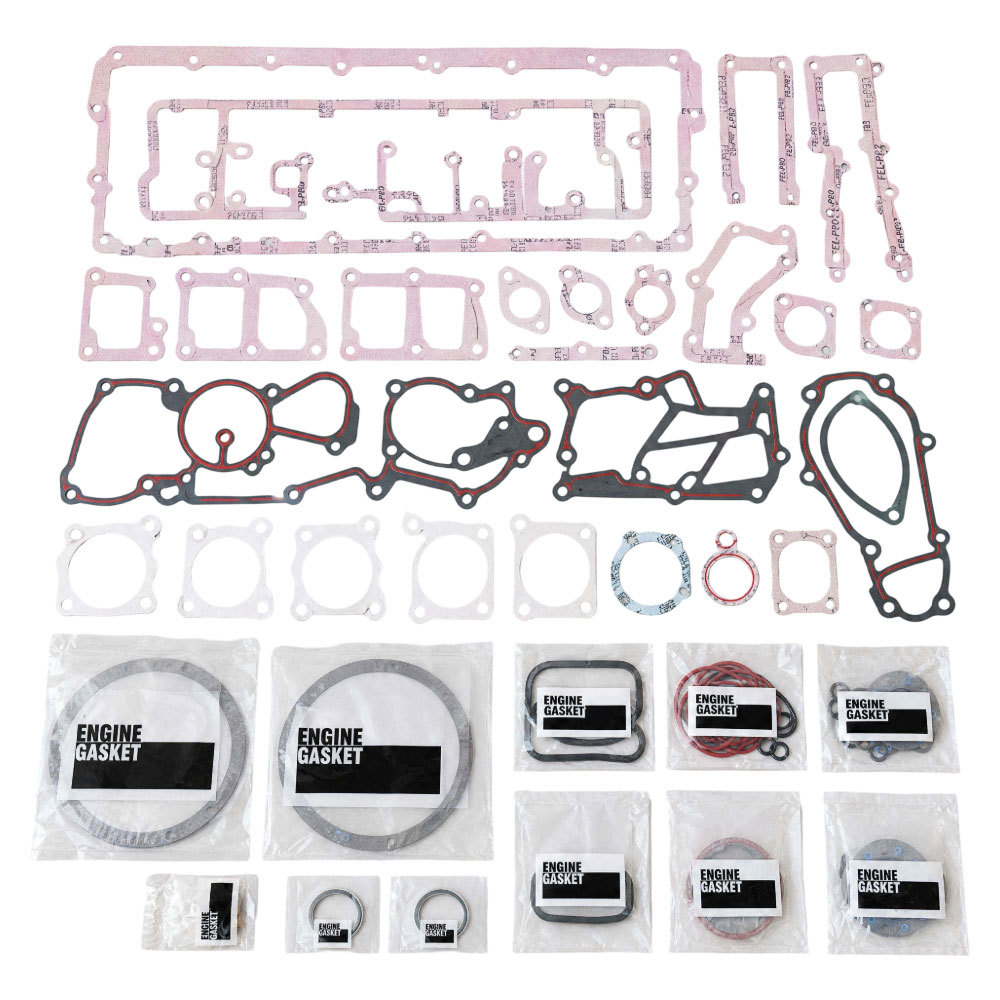

4089717 Lower Engine Gasket Kit (3804666, 4025209, 4376513) offers reliable sealing for Cummins QSK19 engines. Manufactured for durability and precision, this kit ensures optimal performance and compatibility for professional engine maintenance.
4089717(Supersessions:3804666 4025209 4376513) Lower Engine Gasket Kit
| PN |
NAME |
QTY |
| 70624 |
O RING SEAL |
1 |
| 130914 |
SEALING WASHER |
1 |
| 145540 |
O RING SEAL |
1 |
| 153518 |
RECTANGULAR RING SEAL |
4 |
| 172648 |
RECTANGULAR RING SEAL |
14 |
| 186780 |
THERMOSTAT SEAL |
2 |
| 205247 |
O RING SEAL |
1 |
| 205898 |
O RING SEAL |
2 |
| 206973 |
OIL COOLER CORE GASKET |
4 |
| 207117 |
AIR COMPRESSOR GASKET |
1 |
| 3008400 |
HYDRAULIC PUMP GASKET |
1 |
| 3010926 |
FLANGE GASKET |
1 |
| 3014449(Supersessions:6602757) |
FLANGE GASKET |
1 |
| 3028291 |
O RING SEAL |
4 |
| 3035026 |
O RING SEAL |
2 |
| 3040817 |
O RING SEAL |
1 |
| 3042586 |
HAND HOLE GASKET |
3 |
| 3042590 |
OIL PAN GASKET |
1 |
| 3060912 |
CONNECTION GASKET |
1 |
| 3065790 |
LUBRICATING OIL COOLER HOUSING GASKET |
1 |
| 3065791 |
TORQUE CONVERTER OIL COOLER GASKET |
1 |
| 3065830 |
OIL SEAL |
1 |
| 3066938 |
O RING SEAL |
2 |
| 3067259 |
OIL SEAL |
1 |
| 3073213 |
ADAPTER GASKET |
1 |
| 3079754 |
OIL SUCTION CONNECTION GASKET |
1 |
| 3081494 |
O RING SEAL |
6 |
| 3081621 |
CAMSHAFT COVER GASKET |
1 |
| 3081695 |
O RING SEAL |
2 |
| 3081724 |
SPLIT RING SEAL |
6 |
| 3085709 |
O RING SEAL |
1 |
| 3085867 |
OIL SEAL |
1 |
| 3085989 |
LUBRICATING OIL PUMP GASKET |
1 |
| 3086120 |
RECTANGULAR RING SEAL |
2 |
| 3086279 |
DUST SEAL |
1 |
| 3090126 |
O RING SEAL |
2 |
| 3090127 |
O RING SEAL |
2 |
| 3090170 |
THERMOSTAT HOUSING GASKET |
1 |
| 3090194 |
DUST SEAL |
1 |
| 3096260 |
RECTANGULAR RING SEAL |
1 |
| 3096478 |
OIL SEAL |
1 |
| 3201125 |
O RING SEAL |
1 |
| 3201388 |
FLANGE GASKET |
1 |
| 3202283 |
WATER PUMP GASKET |
2 |
| 3410171 |
ACCESSORY DRIVE SUPPORT GASKET |
1 |
| 3804703 |
FRONT CRANKSHAFT SEAL KIT |
1 |
|
3090391
|
SEAL INSTALLATION TOOL |
1 |
|
3090392
|
HEXAGON HEAD CAP SCREW |
4 |
|
3096361
|
PIN DOWEL |
1 |
|
3096478
|
OIL SEAL |
1 |
| 3804705 |
SEAL KIT |
2 |
|
3086120
|
RECTANGULAR RING SEAL |
1 |
|
3090392
|
HEXAGON HEAD CAP SCREW |
3 |
|
3090395
|
SEAL INSTALLATION TOOL |
1 |
|
3096480
|
OIL SEAL |
1 |
|
3200287
|
KEYWAY SEAL |
1 |
| 4000436 |
LUBRICATING OIL FILTER COVER GASKET |
1 |
| 4026171 |
FUEL PUMP GASKET |
1 |
| 4080829 |
GEAR COVER GASKET |
1 |
| 4089902 |
REAR CRANK SEAL KIT |
1 |
|
3042327
|
LOCK WASHER |
4 |
|
3612793
|
REGULAR HEXAGON NUT |
4 |
|
4918646
|
SELF TAPPING METAL SCREW |
4 |
|
4918704
|
SOCKET SET SCREW |
4 |
|
4920028
|
SEAL INSTALLER |
1 |
|
4922215
|
HEXAGON HEAD CAP SCREW |
8 |
|
4922217
|
OIL SEAL |
1 |
| 4308682 |
RECTANGULAR RING SEAL |
1 |
| 4371877 |
OIL PAN ADAPTER GASKET |
1 |
|
5412870
|
OIL PAN ADAPTER GASKET |
1 |
| 4371892 |
RECTANGULAR STRIP SEAL |
2 |
| 4371897 |
HYDRAULIC PUMP GASKET |
1 |
|
5412871
|
HYDRAULIC PUMP GASKET |
1 |
| 4910190 |
CAMSHAFT COVER GASKET |
1 |
| 5483654 |
GEAR COVER PLATE GASKET |
1 |
|
5483655
|
GEAR COVER PLATE GASKET |
1 |
