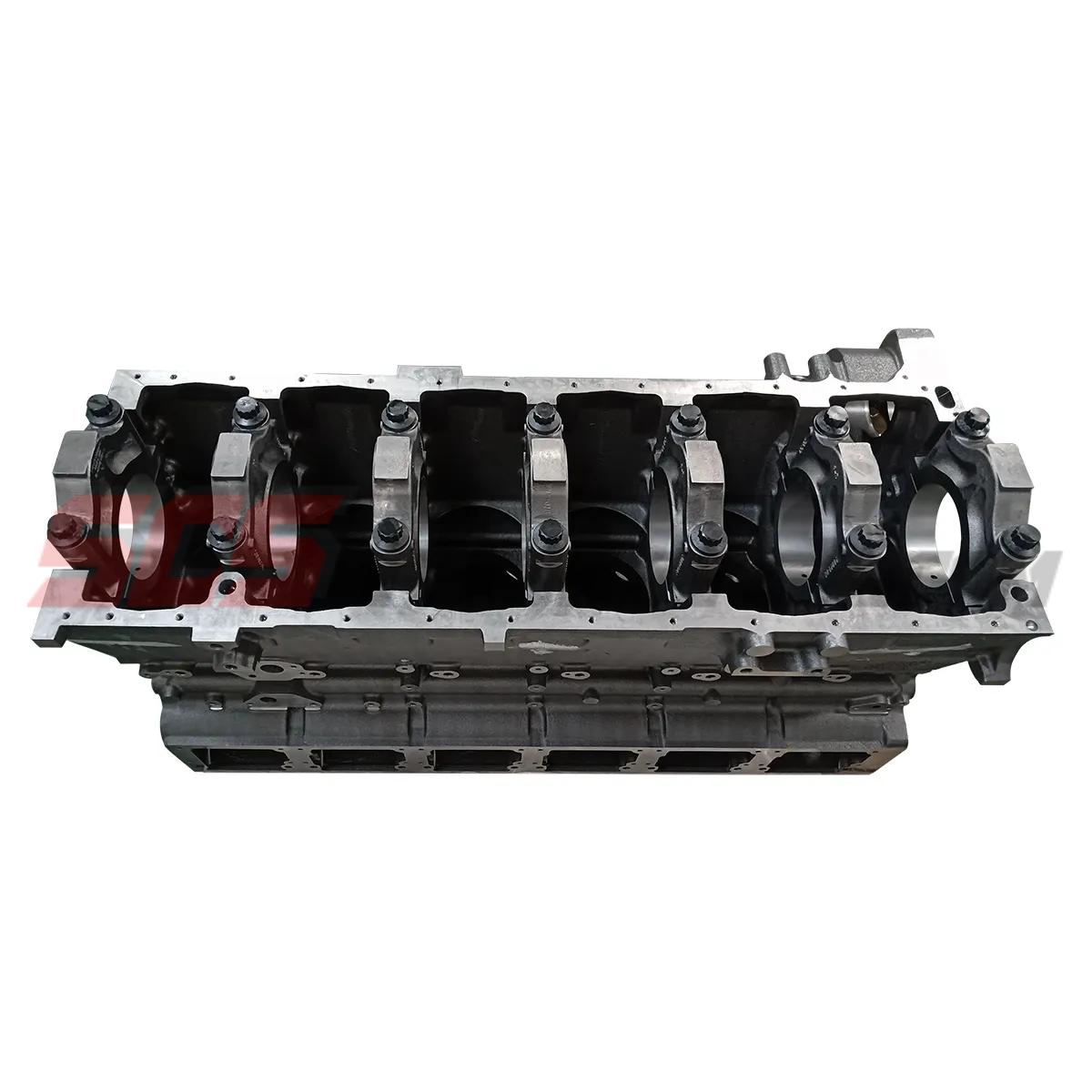

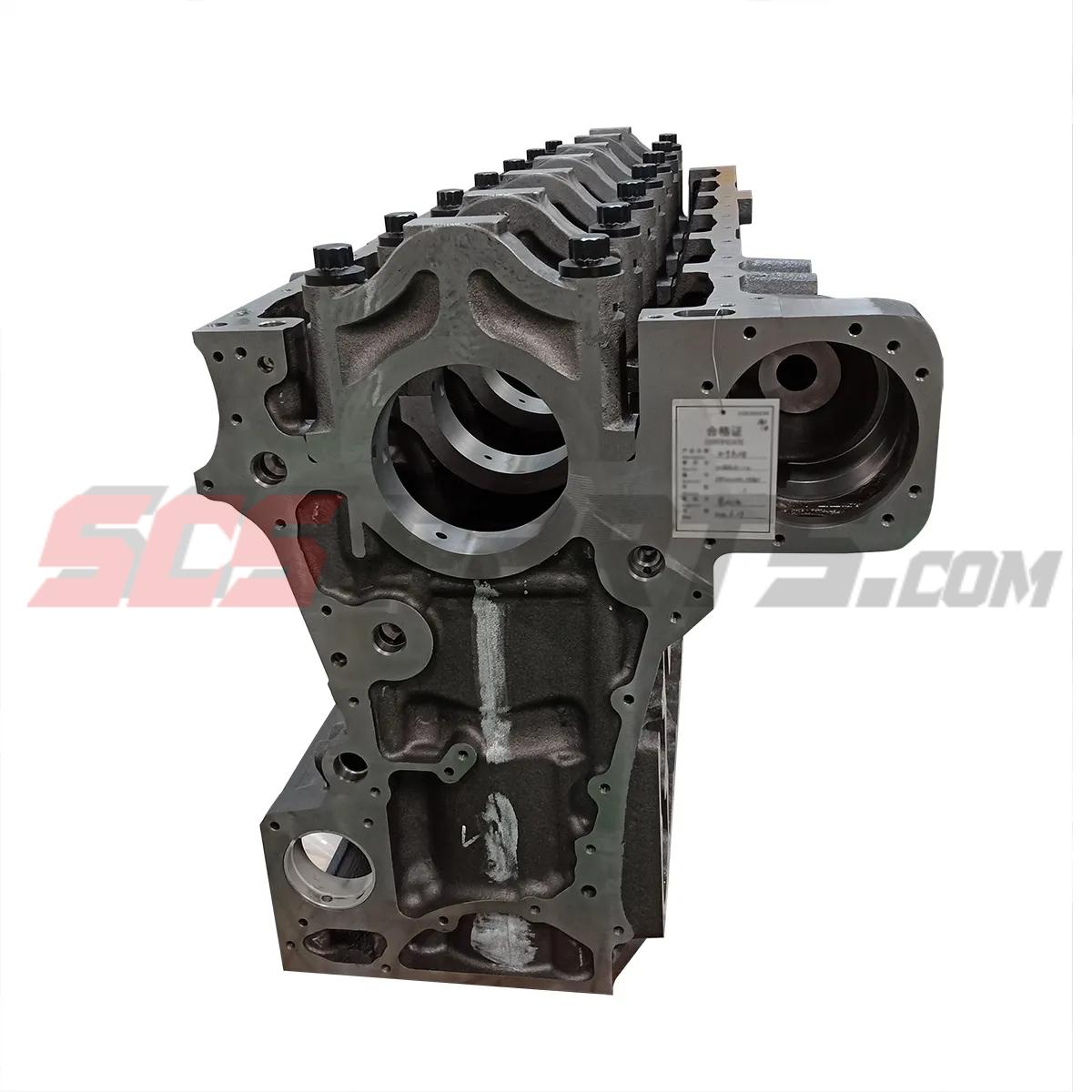

The Cylinder Kit Block is a replacement part that includes a cylinder block, cylinder liners, and all necessary hardware for installation. It is designed to replace the damaged or worn-out cylinder block in Cummins diesel engines, ensuring optimal engine performance and reliability.
Supersedes:3060545, 3811921NX
| NAME |
P/N |
QTY |
| Bushing |
3002834 |
1 |
| Cap, Main Bearing |
205021 |
7 |
| Cap, Main Bearing |
205022 |
4 |
| Cap, Main Bearing |
205023 |
1 |
| Cap, Main Bearing |
205075 |
1 |
| Screw, Captive Washer Cap |
3014766 |
1 |
| Screw, Twelve Point Cap |
191772 |
9 |
| Screw, Hexagon Head Cap |
5-127-C |
2 |
| Screw, Hexagon Head Cap |
S-103-A |
10 |
| Screw, Twelve Point Cap |
3025482 |
2 |
| Screw, Twelve Point Cap |
3032633 |
14 |
| Plug, Pipe |
3025460 |
36 |
| Pin, Groove |
68445 |
1 |
| Dowel, Pin |
60408-L |
12 |
| Dowel, Flywheel Hsg |
9226 |
1 |
| Dowel, Rear Main Bearing |
67211 |
2 |
| Dowel |
124921 |
2 |
| Dowel, Diamond |
205366 |
1 |
| Plug, Expansion |
3007632 |
7 |
| Nozzle, Piston Cooling |
3007517 |
6 |
| Seal, 0 Ring |
3015067 |
6 |
| Plug, Pipe |
3025460 |
1 |
| Plug, Expansion |
147416 |
2 |
| Plug, Pipe |
3008470 |
1 |
| Plug, Expansion |
175830 |
2 |
| Shaft, Idler |
3202114 |
2 |
| Tube, Lub Oil Transfer |
205298 |
1 |
| Washer, Plain |
205059 |
36 |
| Washer, Plain |
127362 |
2 |
| Washer, Lock |
S-603 |
12 |
| Washer, Plain |
S-658 |
12 |
| Plug, Pipe |
3025458 |
8 |
| Screw, Captive Washer Cap |
3033822 |
6 |
